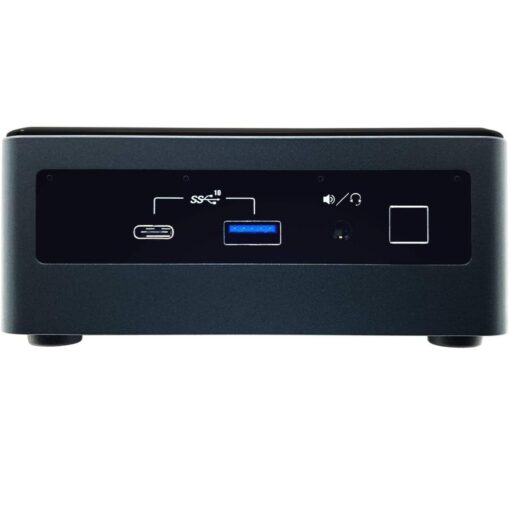

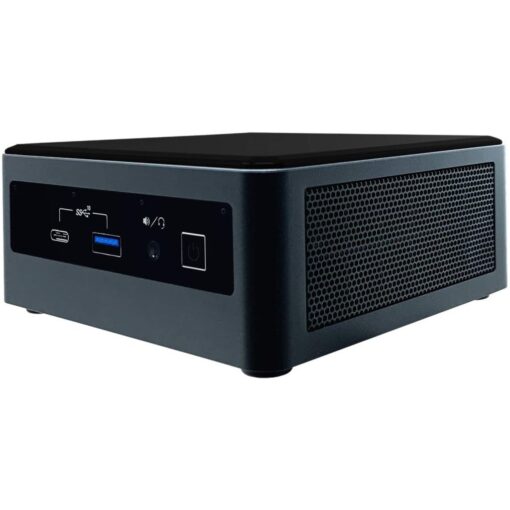

Intel NUC Core i7 Mini PC Kit Dual RAM Slots 2.5 in HDD / SSD M.2 PCIe HDMI 2.0b USBC
190.000 KWD
- Intel NUC Core i7 Mini PC Kit
- Dual RAM Slots 2.5 HDD / SSD M.2 PCIe HDMI 2.0b USBC.
- 11a/b/g/n/ac/ax, Bluetooth 5.0, Gigabit Ethernet Controller,
- High Definition Audio. 3 x USB 3.1 Gen 2 Type A,
- 1 x Thunderbolt 3 / Type C, 1 x USB-C 3.1 Gen 2 (Fast-Charging),
- 1 x HDMI 2.0. A/C Adapter, User Manuals included.
- Also available Intel NUC i5 & Intel NUC i3
Sold Out
Intel NUC Core i7 Mini PC Kit Dual RAM Slots 2.5 HDD / SSD M.2 PCIe HDMI 2.0b USBC. 10th Gen Intel Core i7-10710U 6-Core 1.10 GHz Processor (12MB SmartCache, Boost up to 4.70 GHz).
- 64GB DDR4 2666MHz Memory,
- 512GB Solid State Drive,
- Intel UHD Graphics,
- Windows 10 Pro (64-bit). Wireless-AX MAC 802.
Product Specifications: Intel NUC Core i7 Mini PC Kit
Essentials
| Product Collection | Intel® NUC Kit with 10th Generation Intel® Core™ Processors |
| Code Name | Products formerly Frost Canyon |
| Status | Launched |
| Launch Date | Q4’19 |
| Supported Operating Systems | Windows 10, 64-bit* |
| Board Number | NUC10i7FNB |
| Board Form Factor | UCFF (4″ x 4″) |
| Socket | Soldered-down BGA |
| Internal Drive Form Factor | M.2 and 2.5″ Drive |
| # of Internal Drives Supported | 2 |
| Lithography | 14 nm |
| TDP | 25 W |
| DC Input Voltage Supported | 19 VDC |
| Processor Included | Intel® Core™ i7-10710U Processor (12M Cache, up to 4.70 GHz) |
| Intel vPro® Platform Eligibility ‡ | No |
| # of Cores | 6 |
| # of Threads | 12 |
| Processor Base Frequency | 1.10 GHz |
| Max Turbo Frequency | 4.70 GHz |
| Warranty Period | 3 yrs |
Supplemental Information
| Embedded Options Available | No |
| Datasheet | View now |
| Description | Other features: Includes far-field quad array microphones |
Memory & Storage
| Max Memory Size (dependent on memory type) | 64 GB |
| Memory Types | DDR4-2666 1.2V SO-DIMM |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 42.6 GB/s |
| Max # of DIMMs | 2 |
| ECC Memory Supported ‡ | No |
Processor Graphics
| Processor Graphics ‡ | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Integrated Graphics ‡ | Yes |
| Graphics Output | HDMI 2.0b; USB-C (DP1.2) |
| # of Displays Supported ‡ | 3 |
Expansion Options
| PCI Express Revision | Gen3 |
| PCI Express Configurations ‡ | M.2 slot with PCIe X4 lanes |
| Removable Memory Card Slot | SDXC with UHS-II support |
| M.2 Card Slot (storage) | 22×42/80 |
I/O Specifications
| # of USB Ports | 7 |
| USB Configuration | 2x front (Type-A, Type-C) and 3x rear USB 3.1 Gen2 (2x Type-A, Type-C); 2x USB 2.0 via internal headers |
| USB Revision | 2.0, 3.1 Gen2 |
| USB 2.0 Configuration (External + Internal) | 0 + 2 |
| USB 3.0 Configuration (External + Internal) | 2B 2F + 0 |
| Total # of SATA Ports | 2 |
| Max # of SATA 6.0 Gb/s Ports | 2 |
| RAID Configuration | 2.5″ HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1) |
| Audio (back channel + front channel) | 7.1 digital (HDMI mDP); L+R mic (F) |
| Integrated LAN | Intel® Ethernet Connection I219-V |
| Integrated Wireless‡ | Intel® Wi-Fi 6 AX201 |
| Integrated Bluetooth | Yes |
| Consumer Infrared Rx Sensor | Yes |
| Additional Headers | CEC, 2x USB2.0, FRONT_PANEL, RGB |
| # of Thunderbolt™ Ports | 1x Thunderbolt™ 3 |
Package Specifications: Intel NUC Core i7
| Chassis Dimensions | 117 x 112 x 51mm |
Advanced Technologies
| Intel® Optane™ Memory Supported ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel vPro® Platform Eligibility ‡ | No |
| TPM | No |
| Intel® HD Audio Technology | Yes |
| Intel® Rapid Storage Technology | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
Security & Reliability
| Intel® AES New Instructions | Yes |
