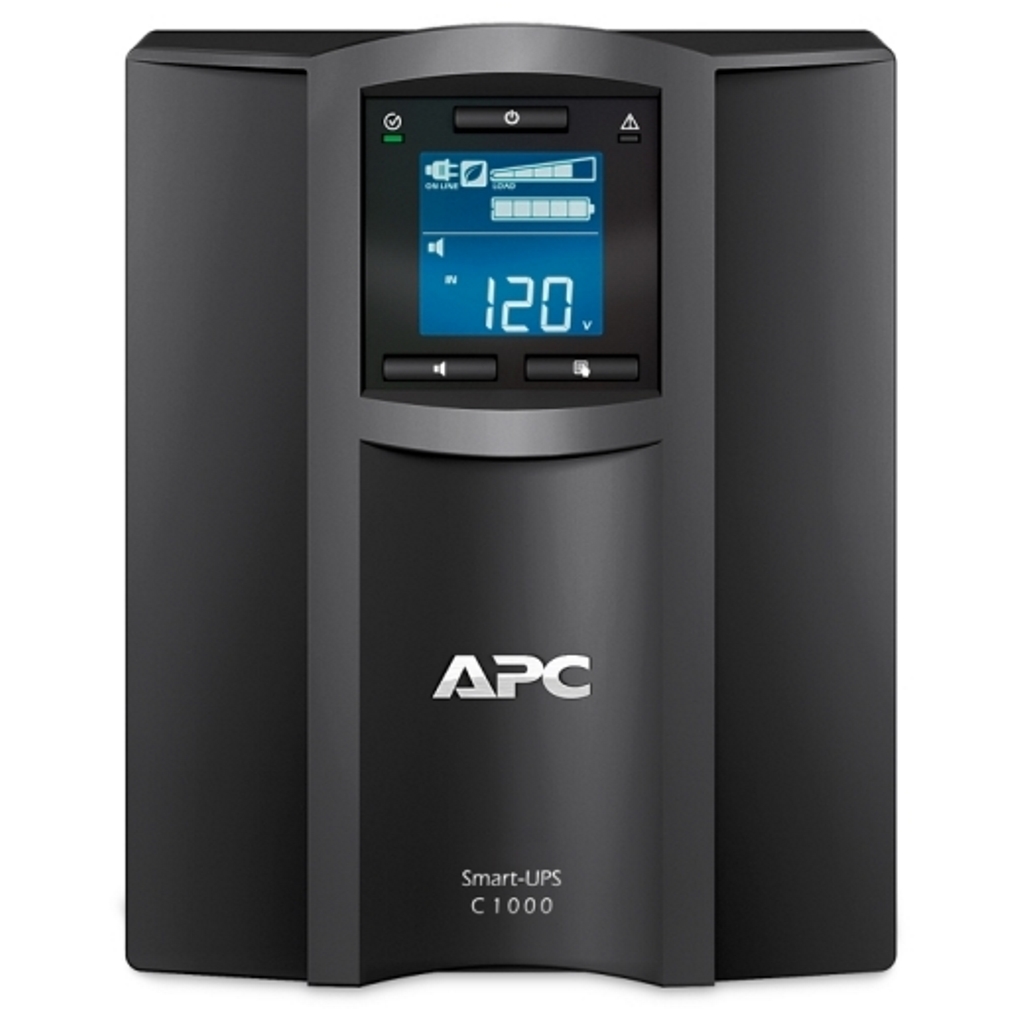

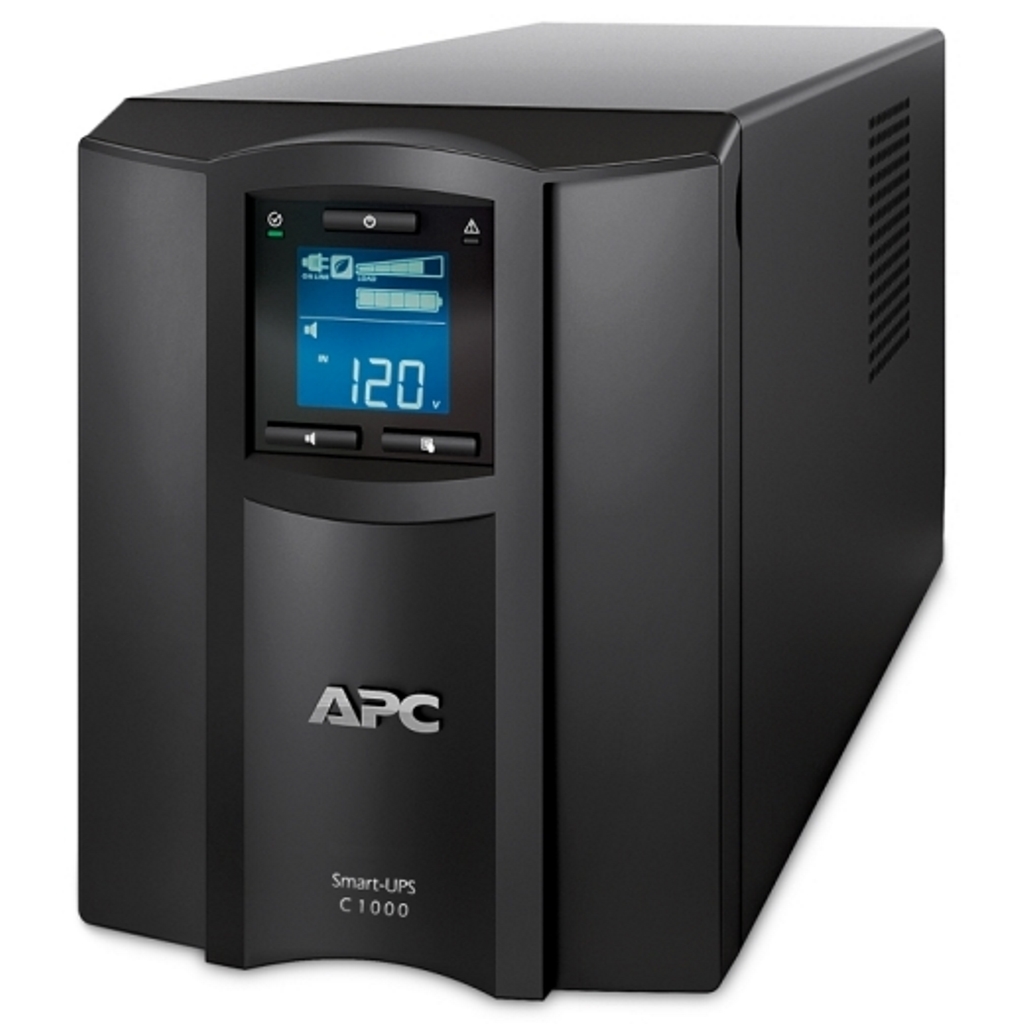

APC Smart-UPS C 1000VA LCD 230V with SmartConnect

APC Smart-UPS C 1000VA LCD 230V with SmartConnect is a high-quality affordable product to have. This product has many users all over the world, especially in Kuwait. Furthermore, it is a branded company that has been in this industry for a long time. Overall the company is one of the top leaders in manufacturing. Moreover, you can find out about its specifications down below. Also in the present world, a USP has become a necessity.

APC Smart-UPS C 1000VA LCD 230V with SmartConnect is a must-have.

Technical Specifications:

Output

• Max Configurable Power (Watts): 600Watts / 1.0kVA.
• Output Voltage Distortion: Less than 5 %.
• Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains.
• Other Output Voltages:220, 240.

Topology

• Line-interactive.
• Waveform type.
• Sine wave.
• Transfer Time.
• Above all, 6 ms typical: 10 ms maximum.

Input

• Input frequency: 50/60 Hz +/- 3 Hz Auto-sensing.
• And the Input voltage range for main operations: 170 – 300 Adjustable, 180 – 287V.
• Then Other Input Voltages: 220, 240.

Batteries & Runtime of APC Smart-UPS

• Battery type: Lead-acid battery.
• Typical recharge time: 3hour(s).
• Replacement Battery: APCRBC142.
• Expected Battery Life (years): 3 – 5.
• RBC Quantity: 1.
• Battery Charge Power (Watts): 72Watts.
• Comparatively, Battery Volt-Amp-Hour Capacity: 216.

Runtime

• View Runtime Graph.
• View Runtime Chart.
• Efficiency.
• View Efficiency Graph
• Communications & M.anagement
• Interface Port(s).
• RJ-45 Serial, USB.
• Control panel.
• Multifunction LCD status and control console.
• Audible Alarm.
• Alarm when on battery: distinctive low battery alarm: configurable delays.
• Surge Protection and Filtering.
• Identically Surge energy rating:455Joules.
• Additionally, Filtering.
• Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449.

Physical of APC Smart-UPS

• Maximum Height: 219mm, 21.9cm.
• Maximum Width:171MM, 17.1CM.
• The Maximum Depth: 439MM, 43.9CM.
• Moreover Net Weight:17.27KG.
• Overall Shipping weight: 19.55KG.
• Shipping Height: 376MM, 37.6CM.
• The Shipping Width: 328MM, 32.8CM.
• Shipping Depth: 595MM, 59.5CM.
• Also Color: Black.
• Master Carton Units: 1.0.
• Also Units per Pallet:18.0.

Environmental

• Operating Temperature: 0 – 40 °C
• And Operating Relative Humidity: 0 – 95 %
• Then the Operating Elevation: 0 – 3048meters
• Also Storage Temperature: -15 – 45 °C
• Similarly Storage Elevation: 0 – 15240meters
• Audible noise at 1 meter from surface of the unit: 41.0dBA
• Furthermore, Online thermal dissipation:100.0BTU/hr

Conformance of APC Smart-UPS

• Approvals: CE, GOST, UL 1778, VDE
• Standard warranty: 2 years repair or replace
• Sustainable Offer Status
• Finally, RoHS Compliant

If you have questions regarding this product, contact us.
