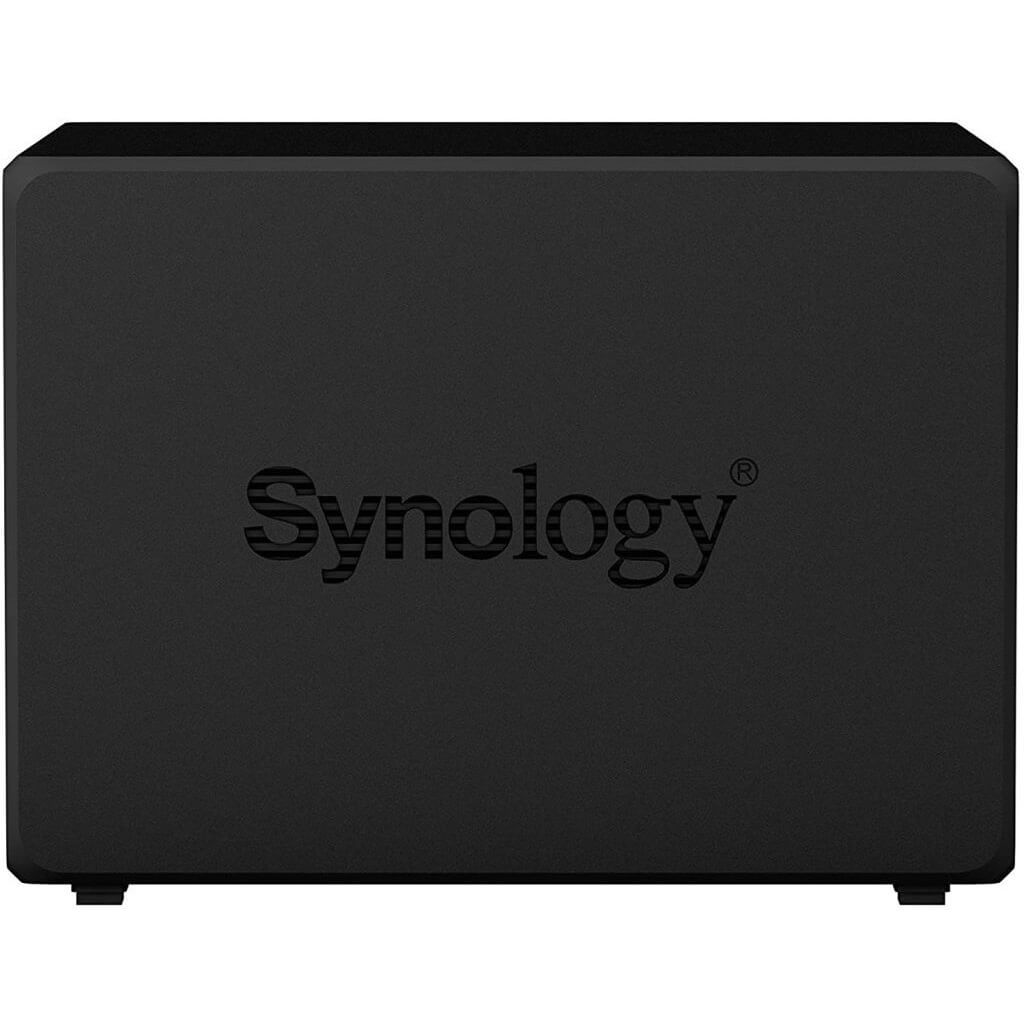

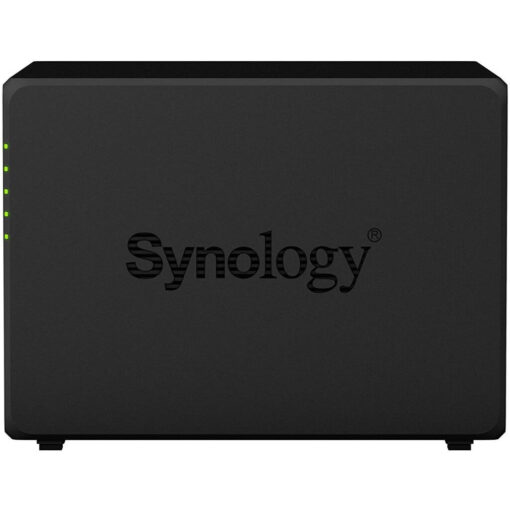

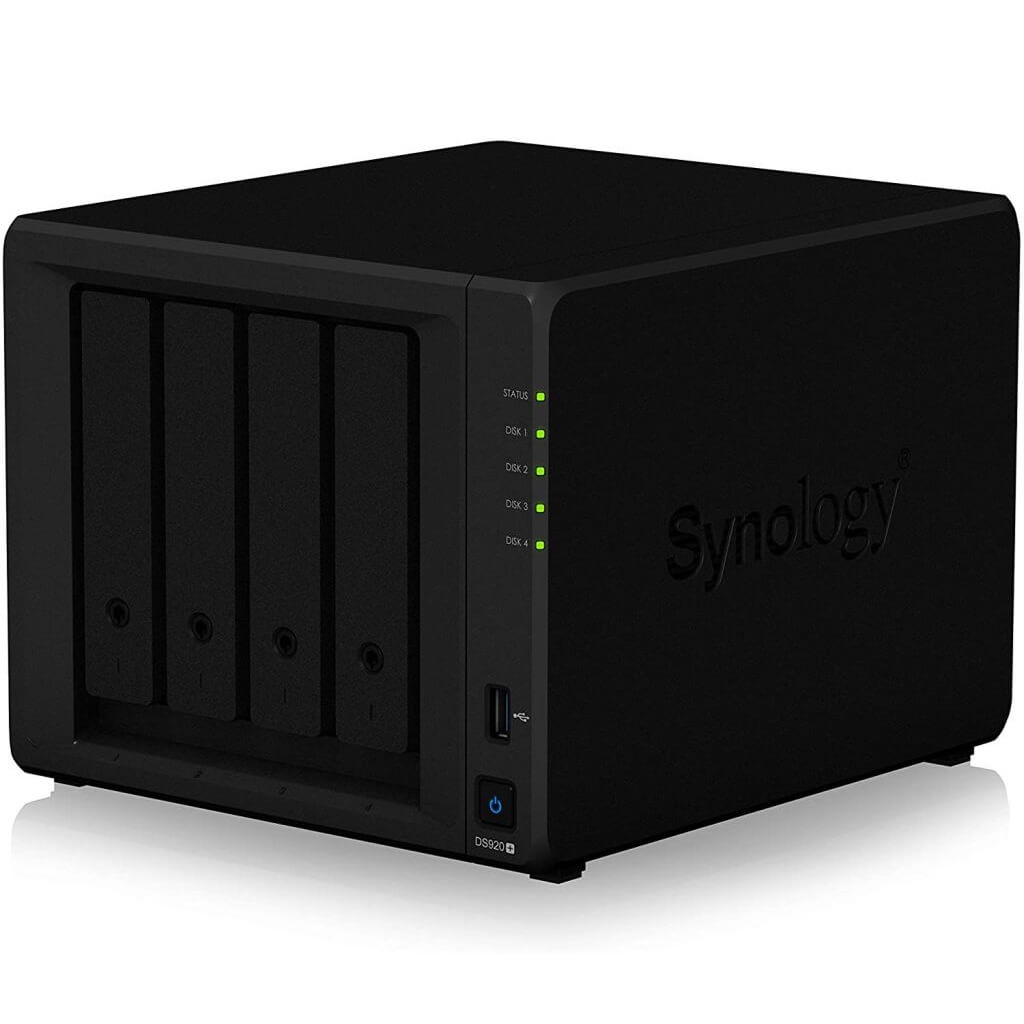

Synology 4-Bay DiskStation NAS Enclosure DS920+
This is a video on how to setup and configure your Synology NAS DS920+. If you need any assistance, contact us at I.T. Megabyte Computers, we are here to help you.
With the Synology DS920+, data management and productivity are greatly improved. It includes two M.2 SSD drives and Synology SSD Cache technology to boost application performance and system I/O. Supported by the advanced storage features, this provides scalable storage so you can expand the amount of storage capacity as your data requirement increases.
Specifications: Synology 4-Bay DiskStation NAS Enclosure DS920+
| Brand | Synology |
| Product | DiskStation |
| Category | Storage devices |
| Type | 4-Bay NAS Enclosure |
| Model | DS920+ |
Technical specifications:
| CPU | CPU Model | Intel Celeron J4125 |
| CPU Quantity | 1 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 4-core 2.0 (base) / 2.7 (burst) GHz | |
| Hardware Encryption Engine (AES-NI) | ||
| Memory | System Memory | 4 GB DDR4 non-ECC |
| Total Memory Slots | 1 | |
| Maximum Memory Capacity | 8 GB (4 GB + 4 GB) | |
| Storage | Drive Bays | 4 |
| Maximum Drive Bays with Expansion Unit | 9 (DX517 x 1) | |
| M.2 Drive Slots | 2 (NVMe) | |
| Compatible Drive Type* (See all supported drives) | 3.5″ SATA HDD 2.5″ SATA HDD 2.5″ SATA SSD M.2 2280 NVMe SSD | |
| Hot Swappable Drive | ||
| External Ports | RJ-45 1GbE LAN Port | 2 (with Link Aggregation / Failover support) |
| USB 3.2 Gen 1 Port* | 2 | |
| eSATA Port | 1 | |
| File System | Internal Drives | Btrfs EXT4 |
| External Drives | Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT | |
| Appearance | Size (Height x Width x Depth) | 166 mm x 199 mm x 223 mm |
| Weight | 2.24 kg | |
| Others | System Fan | 92 mm x 92 mm x 2 pcs |
| Fan Speed Mode | Full-Speed Mode Cool Mode Quiet Mode | |
| Brightness Adjustable Front LED Indicators | ||
| Power Recovery | ||
| Noise Level* | 19.8 dB(A) | |
| Scheduled Power On / Off | ||
| Wake on LAN / WAN | ||
| Power Supply Unit / Adapter | 100 W | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption* | 32.17 W (Access) 9.69 W (HDD Hibernation) | |
| British Thermal Unit | 109.84 BTU/hr (Access) 33.09 BTU/hr (HDD Hibernation) | |
| Temperature | Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH |
Core features: Synology 4-Bay DiskStation NAS
- Two built-in M.2 2280 NVMe SSD slots permit cache acceleration without occupying storage drive bays.
- Intel quad-core processor with AES-NI hardware encryption engine, over 225 MB/s sequential read and write throughput.
- 4 GB DDR4 memory (expandable up to 8 GB); Scalable up to 9 drives with Synology DX517
- Average 15% performance boost to photo indexing and other computing-intensive operations, as well as database response time.
- By default, two camera licenses are installed; extra licenses can be purchased (CLP1, CLP4, or CLP8)
