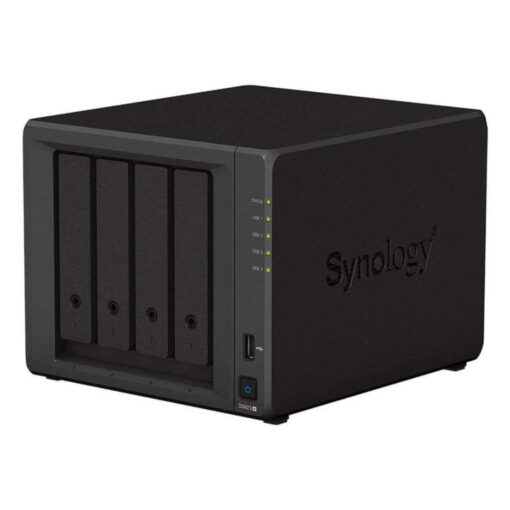

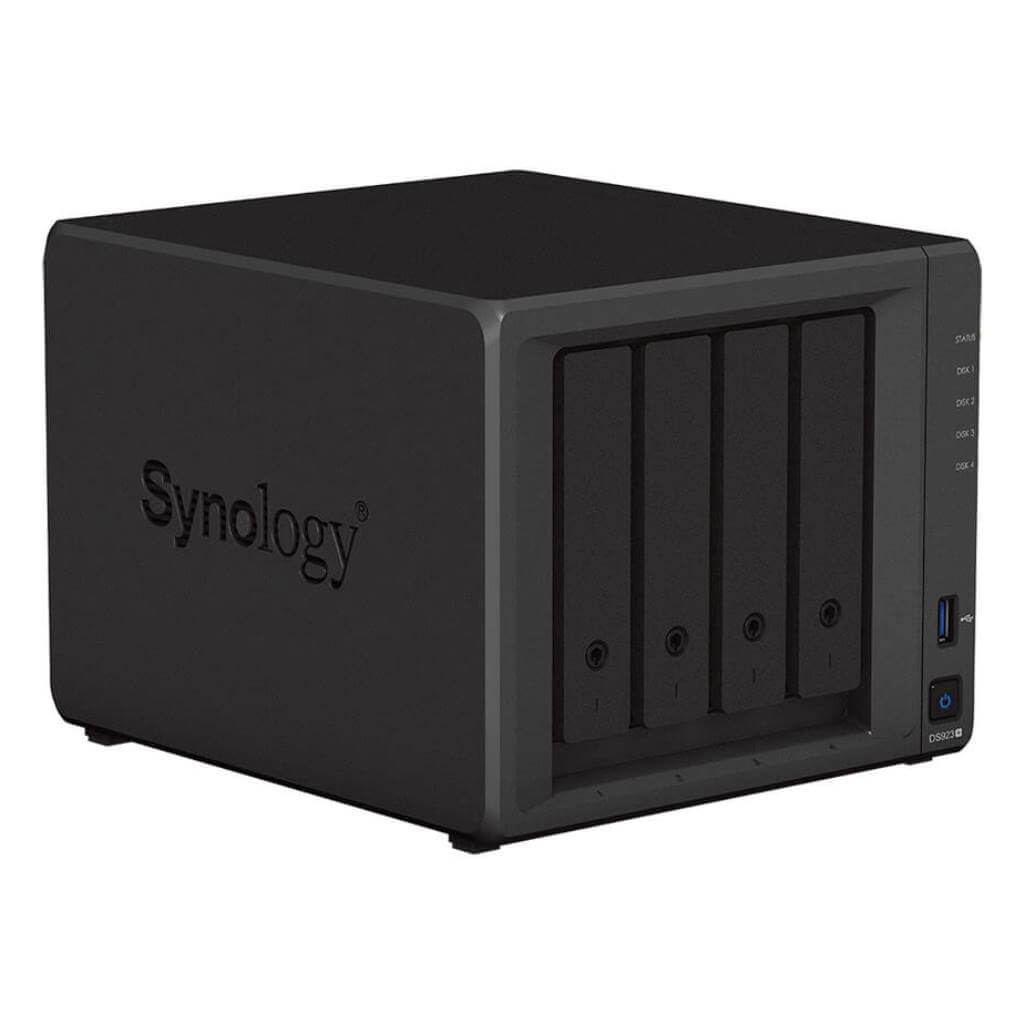

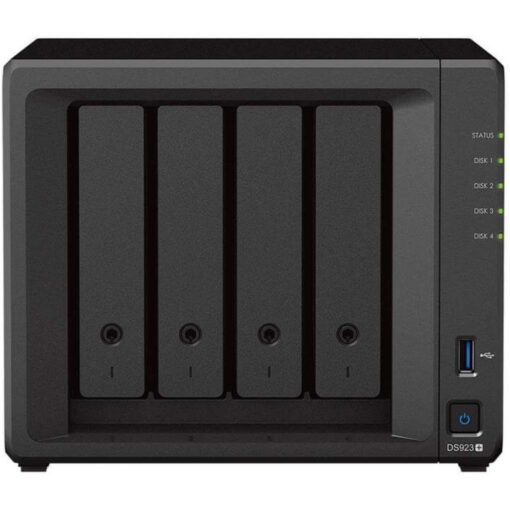

Synology 4-Bay DiskStation NAS Enclosure DS923+
Synology DS923+ is an ideal network-attached storage solution to streamline data management and productivity. Two built-in M.2 SSD slots and Synology SSD Cache technology allow you to boost system I/O and application performance. Scalable storage design lets you start small and expand storage capacity with Synology DX517 as your data grows.
Flexible file sharing and storage solution for home users and small businesses Synology DS923+ is a powerful 4-bay NAS solution that can be customized and expanded as needed,
with support for up to nine drives, faster networking, and NVMe SSDs for SSD cache or additional storage pools.
With Synology DiskStation Manager (DSM), it is a flexible all-in-one solution for data sharing, syncing, backup, and video surveillance.
- AMD Ryzen™ R1600 dual-core (4 threads), max. boost clock up to 3.1 GHz
- 2x USB 3.2 Gen 1 ports
- 1x expansion port (eSATA)
- 2x RJ45 Gigabit Ethernet
- Supports 10GbE RJ-45 network upgrade module E10G22-T1-Mini
Reliable performance
Up to 625/559 MB/s sequential read and write throughput for fast and efficient file management
Versatile network storage
Leverage integrated solutions for file and photo management, data protection, virtualization, and video surveillance
Fast and stable connections
Two 1GbE ports for easy integration into existing environments and optional 10GbE connectivity for more specialized and bandwidth-intensive applications
Easy capacity expansion
Expandable by 5 bays to a maximum of 9 storage drives with a DX517 expansion unit
Package contents:
- 1x DS923+ main unit
- 1x quick installation guide
- 1x accessories package
- 1x AC power adapter
- 1x AC power cable
- 2x RJ-45 LAN cable
Specifications:
| CPU | CPU Model | AMD Ryzen R1600 |
| CPU Quantity | 1 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 2-core 2.6 (base) / 3.1 (turbo) GHz | |
| Hardware Encryption Engine (AES-NI) | ||
| Memory | System Memory | 4 GB DDR4 ECC |
| Memory Module Pre-installed | 4 GB (4 GB x 1) | |
| Total Memory Slots | 2 | |
| Maximum Memory Capacity | 32 GB (16 GB x 2) | |
| Notes |
| |
| Storage | Drive Bays | 4 |
| Maximum Drive Bays with Expansion Unit | 9 (DX517 x 1) | |
| M.2 Drive Slots | 2 (NVMe) | |
| Compatible Drive Type* (See all supported drives) |
| |
| Hot Swappable Drive* | ||
| Notes |
| |
| External Ports | RJ-45 1GbE LAN Port* | 2 (with Link Aggregation / Failover support) |
| USB 3.2 Gen 1 Port* | 2 | |
| eSATA Port | 1 | |
| Notes |
| |
| PCIe | PCIe Expansion | 1 x Gen3 x2 network upgrade slot |
| File System | Internal Drives |
|
| External Drives |
| |
| Appearance | Size (Height x Width x Depth) | 166 mm x 199 mm x 223 mm |
| Weight | 2.24 kg | |

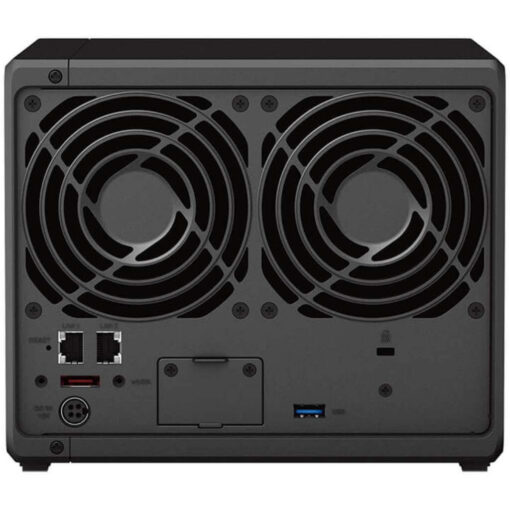

| Others | System Fan | 92 mm x 92 mm x 2 pcs |
| Fan Speed Mode |
| |
| Brightness Adjustable Front LED Indicators | ||
| Power Recovery | ||
| Noise Level* | 22.9 dB(A) | |
| Scheduled Power On / Off | ||
| Wake on LAN / WAN | ||
| Power Supply Unit / Adapter | 100 W | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 35.51 W (Access) 11.52 W (HDD Hibernation) | |
| British Thermal Unit | 121.09 BTU/hr (Access) 39.28 BTU/hr (HDD Hibernation) | |
| Notes |
| |
| Temperature | Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
| Certification |
| |
| Warranty | limited hardware warranty, | |
| Notes |
| |
| Environment | RoHS Compliant | |
| Packaging Content |
| |
| Optional Accessories |
| |
