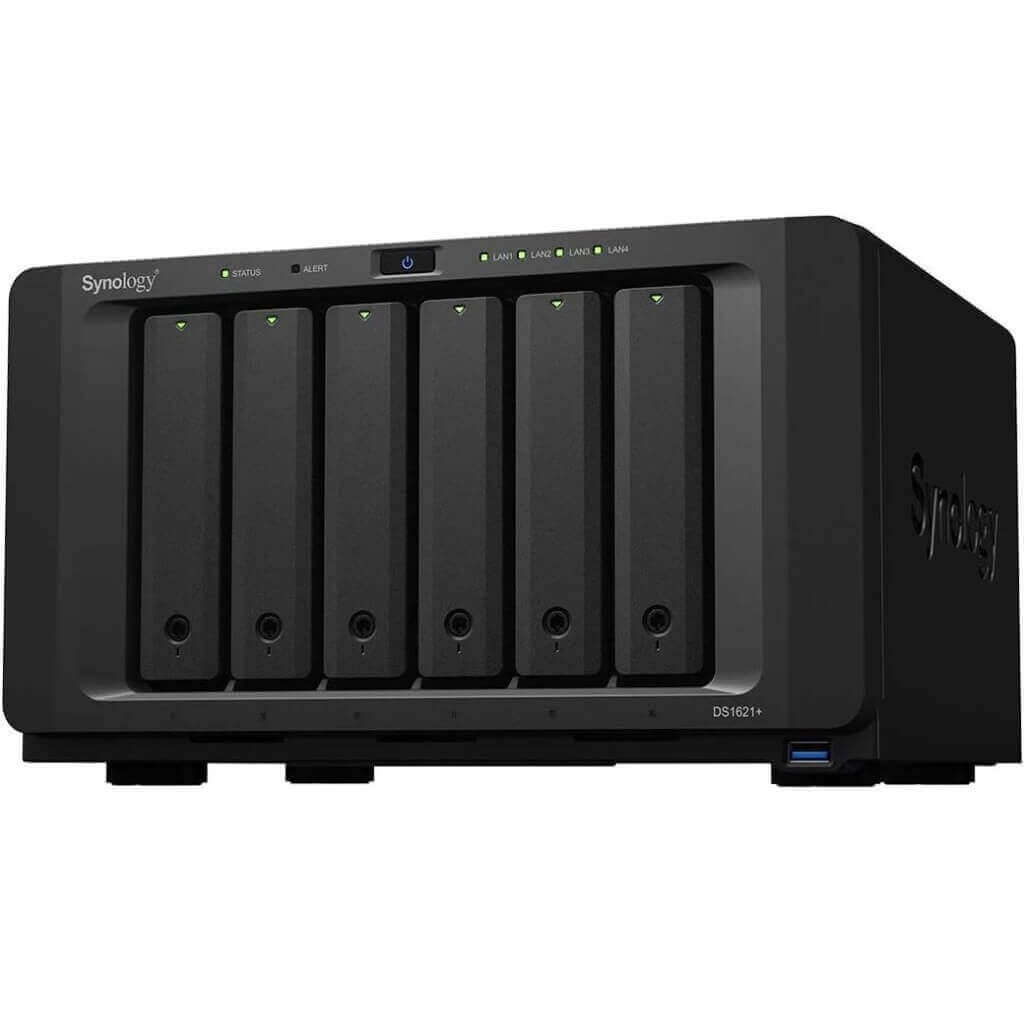

When you want reliable storage management, look for a branded and high-quality solution. This is Synology 6-Bay DiskStation NAS enclosure DS1621+ which is a powerful and compact storage solution. In today’s advanced technological era, protecting, storing, and accessing data is critical. Considering all the new features and latest technology, this disk station offers you ultimate protection and makes your data stored in the right place.
Specifications: Synology 6-Bay DiskStation NAS Enclosure DS1621+
| Brand | Synology |
| Category | Storage Devices |
| Product | NAS Enclosure |
| Model | DS1621+ |
| Type | 6-Bay DiskStation |
Technical Specifications:
Hardware Specs
CPU
| CPU Model | AMD Ryzen V1500B |
| CPU Quantity | 1 |
| CPU Architecture | 64-bit |
| CPU Frequency | 4-core 2.2 GHz |
| Hardware Encryption Engine (AES-NI) |
Memory
| System Memory | 4 GB DDR4 ECC SODIMM |
| Memory Module Pre-installed | 4 GB (4 GB x 1) |
| Total Memory Slots | 2 |
| Maximum Memory Capacity | 32 GB (16 GB x 2) |
Storage
| Drive Bays | 6 |
| Maximum Drive Bays with Expansion Unit | 16 (DX517 x 2) |
| M.2 Drive Slots | 2 (NVMe) |
| Compatible Drive Type* (See all supported drives) | · 3.5″ SATA HDD · 2.5″ SATA HDD · 2.5″ SATA SSD · M.2 2280 NVMe SSD |
| Hot Swappable Drive* | |
| Notes | · The hot swappable drive feature is not supported by M.2 SSD slots. · “Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. |
External Ports
| RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) |
| USB 3.2 Gen 1 Port* | 3 |
| eSATA Port | 2 |
| Notes | The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. |
| PCIe Expansion | 1 x Gen3 x8 slot (x4 link) |
File System
| Internal Drives | · Btrfs · EXT4 |
| External Drives | · Btrfs · EXT4 · EXT3 · FAT · NTFS · HFS+ · exFAT |
| Notes | exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center. |
Appearance
| Size (Height x Width x Depth) | 166 mm x 282 mm x 243 mm |
| Weight | 5.1 kg |
Others
| System Fan | 92 mm x 92 mm x 2 pcs |
| Fan Speed Mode | · Full-Speed Mode · Cool Mode · Quiet Mode |
| Easy Replacement System Fan | |
| Brightness Adjustable Front LED Indicators | |
| Power Recovery | |
| Noise Level* | 25.2 dB(A) |
| Scheduled Power On / Off | |
| Wake on LAN / WAN | |
| Power Supply Unit / Adapter | 250 W |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption | 51.22 W (Access) 25.27 W (HDD Hibernation) |
| British Thermal Unit | 174.77 BTU/hr (Access) 86.22 BTU/hr (HDD Hibernation) |
| Notes | · Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). · Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Moreover, Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% |
Temperature:
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
Certifications:
| · FCC · CE · BSMI · EAC · CCC · KC · VCCI · RCM | |
| Notes | · Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions. · The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) |
Packaging Contents
- Main Unit X 1
- Accessory Pack X 1
- AC Power Cord X 1
- RJ-45 LAN Cable X 2
- Quick Installation Guide X 1
Core features:
Powerful, scalable, and versatile
Firstly, Synology DS1621+ is a powerful and compact 6-bay network attached storage solution designed to store and protect critical data assets. Additionally, in today’s growing amount of unstructured data requires smarter and increasingly higher performance methods of storing, accessing, and collaborating. Lastly, this is designed for scalability, the DS1621+ enables you to start small, then expand as your data grows.
Faster than ever
Compared to its predecessor, DS1621+ is faster in just about everything. Besides that, get things done quicker through Synology Drive and streamline photo management with Synology Moments.
Ultimate file management and sharing
File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operations without requiring any complex setup on Mac or PC. Advanced search and filtering tools allow for easy organization and file sharing. For complete compatibility, DS1621+ supports the following protocols: AFP, FTP, iSCSI, NFS, SMB, and WebDAV.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Ultimate Backup Solution
Additionally, DS1621+ integrates various backup applications into an intuitive user interface, offering durable storage technologies to safeguard your valuable data on any device.
Notes:
- Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Overall, rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
- Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
- Lastly, for more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
